Venco Scissor Action Hoist Kits
Venco Scissor Action Hoist Kits

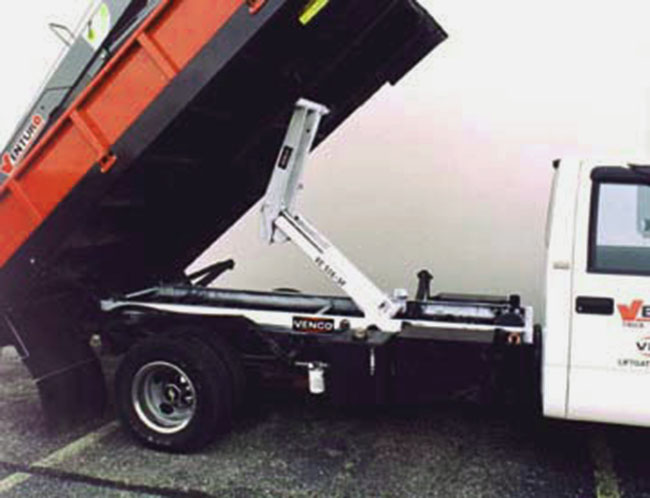

Scissor hoists for 9′ – 12′ bodies (capacities to 9.7 ton)
- Light weight allows maximum payloads. (450 lbs.)
- Factory assembled to eliminate parts shortages and speed installation
- Most installations completed in six hours
- Standard electronic controls in single acting electric and double acting electric, and PTO power
- Low mount design for greater stability
- Quick-mount rear hinge assembly
- Pre-installed safety prop
- Available with optional subframe
Specifications
- Dump Class 10, Conversion Class B, Cylinder 4″ bore x 16″ stroke
- Single or Double Acting 3000/1000 PSI
- High pressure cylinder with multi-hard chromed and polished cylinder shafts
- Built-in taper guides standard
- Mounting height: 5-3/4″
- Fits truck frame widths 29.5″ to 34.0″
Scissor hoists for 9′ – 12′ bodies (capacities to 15.1 ton)
- Light weight allows maximum payloads. (480 lbs.)
- Factory assembled to eliminate parts shortages and speed installation
- Most installations completed in six hours
- Standard electronic controls in single acting electric and double acting electric, and PTO power
- Low mount design for greater stability
- Quick-mount rear hinge assembly
- Pre-installed safety prop
- Available with optional subframe
Specifications
- Dump Class 20, Conversion Class C, Cylinder 5″ bore x 16″ stroke
- Single or Double Acting 3000/1000 PSI
- High pressure cylinder with multi-hard chromed and polished cylinder shafts
- Built-in taper guides standard
- Mounting height: 5-3/4″
- Fits truck frame widths 29.5″ to 34.0″
